セレーヌ45・47オーシャン・トローラー

SELENE45主要寸法
  • L.O.A.: 47′-7″ ( 14.51M )
  • L.O.H.: 44′-44″ ( 13.69M )
  • L.O.D.: 43′-6″ ( 13.26M )
  • L.W.L.: 42′-4″ ( 12.90M )
  • Beam (over all W/ rub rail): 15′-8″ ( 4.78M )
  • Draft to Keel ( Full load ): 5′-0″ ( 1.52M )
  • Displacement ( Full load ): 56,100 lbs.
  • Ballast: 3,000 lbs.
  • Fuel Capacity: 1,000 USG
  • Water Capacity: 290 USG
  • Holding Tank Capacity: 60 USG
  • Top Speed: 10 Kts
  • Cruising Speed: 8.5 Kts
  • Bridge Clearance Mast Up: 23′-3″
  • Bridge Clearance Mast Down: 13′-9″
  • Standard Power: Commins 6BT5.9M 210 hp @2600 RPM Intermittent Duty
SELENE47主要寸法
  • L.O.A.: 51′-10″ ( 15.80M )
  • L.O.H.: 48′-5″ ( 14.76M )
  • L.O.D.: 47′-2″ ( 14.38M )
  • L.W.L.: 45′-9″ ( 13.94M )
  • Beam (over all W/ rub rail): 15′-8″ ( 4.78M )
  • Draft to Keel ( Full load ): 5′-1″ ( 1.55M )
  • Displacement ( Full load ): 62,000 lbs.
  • Ballast: 4,000 lbs.
  • Fuel Capacity: 1100 USG
  • Water Capacity: 300 USG
  • Holding Tank Capacity: 60 USG
  • Top Speed: 10.5 Kts
  • Cruising Speed: 9 Kts
  • Bridge Clearance Mast Up: 23′-3″
  • Bridge Clearance Mast Down: 13′-9″
  • Standard Power: Commins 6BTA5.9M 315 hp @2800 RPM Intermittent Duty

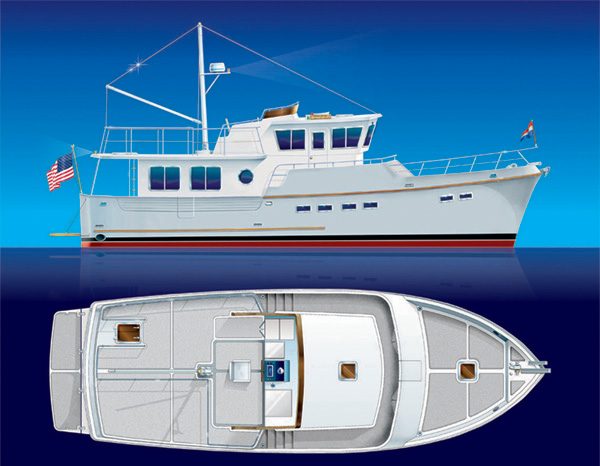

S43-2

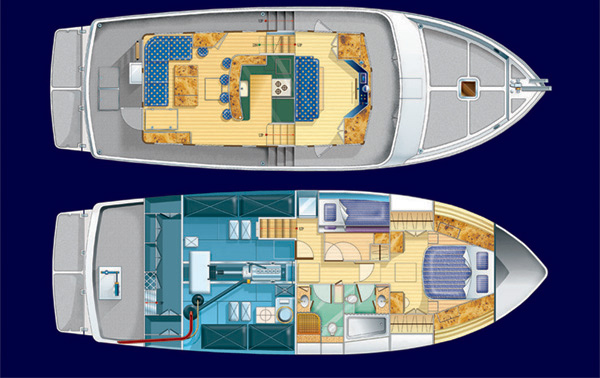

s43-3

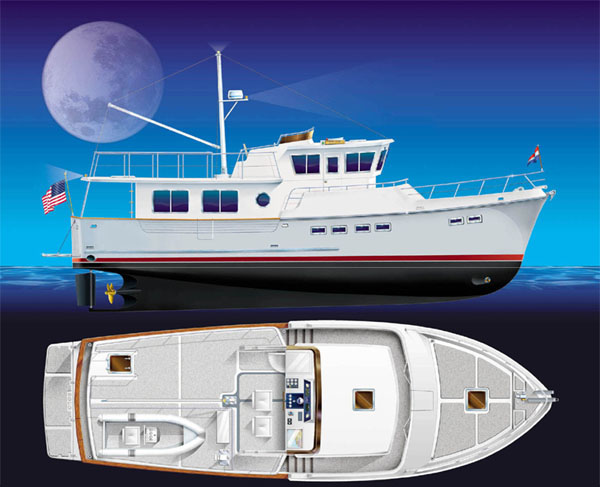

S47-2
